The Impact of a 45° Elbow on Flow Rate and Pressure in Piping Systems

When designing or maintaining a piping system, the choice of fittings plays a crucial role in determining its efficiency and performance. Among these, the PPR Plastic Fitting Elbow 45° is often preferred for its ability to facilitate smooth directional changes. In this blog, we’ll explore how using a 45° elbow affects the flow rate and pressure within a piping system and why PPR fittings are an excellent choice for such applications.

Understanding the Role of a 45° Elbow in Piping Systems

A 45° elbow is designed to create a gradual directional change in a piping system, unlike the sharper angle provided by a 90° elbow. This smoother transition is particularly important in applications where maintaining optimal flow characteristics is essential.

Impact on Flow Rate

1. Reduced Turbulence

  - A 45° elbow allows fluid to change direction more gradually, reducing turbulence compared to a 90° elbow.

  - Less turbulence ensures a higher flow rate, making it ideal for systems that demand efficient fluid transport.

2. Minimized Energy Loss

  - Sharp angles in a piping system can disrupt the flow, causing energy losses.

  - The gentle curve of a 45° elbow minimizes these disruptions, maintaining the velocity of the fluid.

Impact on Pressure

1. Lower Pressure Drop

  - The pressure drop across a fitting occurs due to friction and turbulence as the fluid navigates the directional change.

  - A 45° elbow, with its smoother path, results in a significantly lower pressure drop compared to a 90° elbow.

2. Improved System Efficiency

  - By maintaining a more consistent pressure throughout the system, a 45° elbow ensures that the system operates more efficiently, reducing the need for additional pumping power.

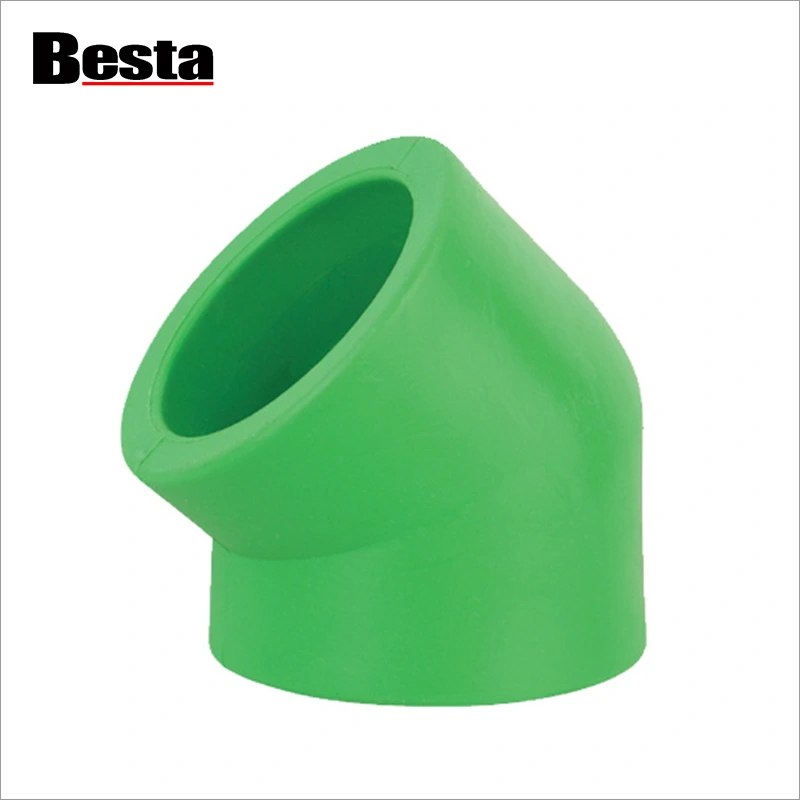

Why Choose PPR Plastic Fitting Elbow 45°?

The PPR Plastic Fitting Elbow 45° combines the functional advantages of a 45° elbow with the exceptional properties of PPR material:

- Corrosion Resistance: PPR is highly resistant to corrosion, making it ideal for both hot and cold water systems.

- Smooth Interior Surface: Reduces friction losses, further enhancing flow efficiency.

- Durability: PPR fittings are designed to withstand high pressure and temperature, ensuring long-term performance.

- Eco-Friendly: PPR is non-toxic and recyclable, making it a sustainable choice for modern piping systems.

The PPR Plastic Fitting Elbow 45° is a smart choice for improving flow dynamics and reducing pressure loss in a piping system. Its combination of design and material properties ensures efficiency, durability, and eco-friendliness. Whether you’re working on residential plumbing or industrial systems, understanding these benefits can help you make informed decisions for your project.
