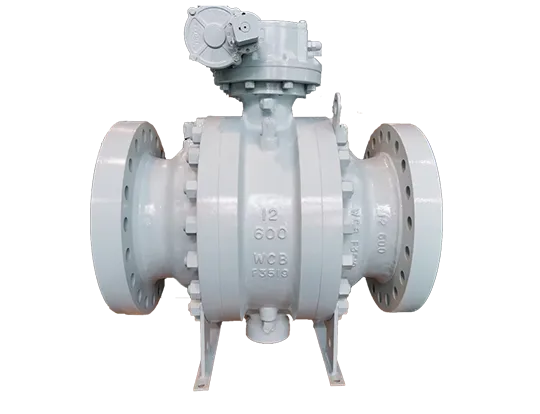

Installation and Maintenance of Trunnion Mounted Ball Valves

Proper installation and maintenance are crucial for the longevity and optimal performance of trunnion mounted ball valves. Understanding how to install these valves correctly and maintain them over time can prevent costly downtime and ensure safe operation. This blog post will provide a comprehensive guide to the installation, maintenance, and troubleshooting of trunnion mounted ball valves.

1. Installation of Trunnion Mounted Ball Valves

- Preparation: Before installation, inspect the valve for any shipping damage. Ensure that all components, including seals and bolts, are intact.

- Pipe Alignment: Align the piping with the valve carefully. Misalignment can lead to excessive stress on the valve and may cause leaks or premature failure.

- Support: Trunnion mounted ball valves are often heavy and require proper support. Ensure that the valve is adequately supported on both ends to prevent sagging.

- Flange Connection: When connecting the valve to the pipeline, use the appropriate gaskets and ensure the bolts are tightened to the manufacturer's specifications. Follow a star pattern for tightening to maintain even pressure.

- Orientation: Ensure that the valve is installed in the correct orientation as specified by the manufacturer. This may include positioning the actuator above the valve body for ease of access.

2. Maintenance of Trunnion Mounted Ball Valves

Regular maintenance is essential to keep trunnion mounted ball valves functioning efficiently:

- Routine Inspections: Conduct periodic inspections to check for signs of wear, corrosion, or leaks. Inspect seals, trunnions, and the actuator for any abnormalities.

- Lubrication: Lubricate the valve components as recommended by the manufacturer. Proper lubrication reduces friction and wear, extending the valve's life.

- Seal Replacement: Replace seals and O-rings as necessary to prevent leaks. This is especially important in high-pressure applications where seal integrity is critical.

- Function Testing: Perform regular function tests to ensure the valve operates smoothly. This includes opening and closing the valve multiple times and monitoring for any irregularities.

3. Troubleshooting Common Issues

Even with proper installation and maintenance, issues may arise with trunnion mounted ball valves. Here are some common problems and their solutions:

- Leakage: If leakage is detected, check the seals and seating surfaces for damage. Replace worn seals or perform a seat refurbishment if necessary.

- Difficulty in Operation: If the valve becomes difficult to operate, check for misalignment or inadequate lubrication. Ensure that the actuator is functioning correctly and adjust as needed.

- Inconsistent Flow: Inconsistent flow may indicate a blockage or buildup of debris within the valve. Inspect the valve for obstructions and clean as needed.

Trunnion mounted ball valves are vital components in many industrial processes, and their performance relies heavily on proper installation and maintenance. By following the guidelines outlined in this blog post, users can ensure the longevity and reliability of these valves. In our next post, we will delve into advancements in trunnion mounted ball valve technology, exploring new materials and designs that enhance their performance in demanding applications.
