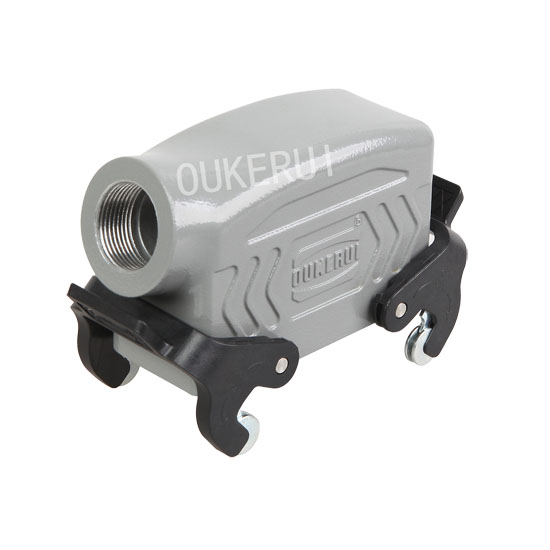

How to Choose and Install 16B Side Entry PG21 Plug Double Plastic Lever Heavy Duty Connector Hoods

Choosing the right connector hood for your industrial needs is crucial for ensuring the efficiency and safety of your electrical systems. The 16B Side Entry PG21 Plug Double Plastic Lever Heavy Duty Connector Hood stands out for its robust features and adaptability. Here’s how to choose and install this versatile component effectively.

Factors to Consider When Choosing the Connector Hood

1. Cable Diameter

  - Ensure the PG21 entry is suitable for the cable sizes you’ll be using.

2. Environmental Conditions

  - Check the hood’s resistance to dust, moisture, and temperature variations to match your operating environment.

3. Material and Durability

  - Opt for hoods made from high-quality materials to withstand mechanical stress and corrosion.

4. Ease of Use

  - The double plastic lever mechanism should offer a secure yet user-friendly locking system.

5. Compatibility

  - Verify that the connector hood is compatible with your existing electrical components and systems.

Installation Steps

1. Prepare the Components

  - Inspect the connector hood and cables for any damage or debris before starting.

2. Insert the Cable

  - Pass the cable through the PG21 entry and secure it in place.

3. Connect the Wiring

  - Ensure proper alignment and connection of the internal wiring components.

4. Secure the Hood

  - Use the double plastic levers to lock the hood firmly, ensuring a tight seal.

5. Test the Connection

  - Check for stability and functionality by testing the electrical connection.

Maintenance Tips

- Regular Inspections: Periodically check for signs of wear, corrosion, or loosening.

- Clean as Needed: Remove any accumulated dust or debris to maintain optimal performance.

- Replace Damaged Parts: Promptly replace worn or damaged components to prevent system failures.

Advantages of Proper Installation

- Enhanced Safety: Minimizes the risk of electrical faults and short circuits.

- Improved Efficiency: Ensures stable connections for uninterrupted operation.

- Longevity: Properly installed hoods last longer and perform reliably over time.

Common Use Cases

1. Power Distribution: Ensuring secure connections in electrical distribution systems.

2. Control Panels: Protecting wiring in industrial control systems.

3. Heavy Machinery: Safeguarding connections in large equipment.

4. Outdoor Applications: Withstanding environmental challenges in outdoor installations.

The 16B Side Entry PG21 Plug Double Plastic Lever Heavy Duty Connector Hood is an ideal solution for those seeking durability and efficiency in their electrical systems. By choosing the right hood and following proper installation procedures, you can ensure optimal performance and reliability in any application.
