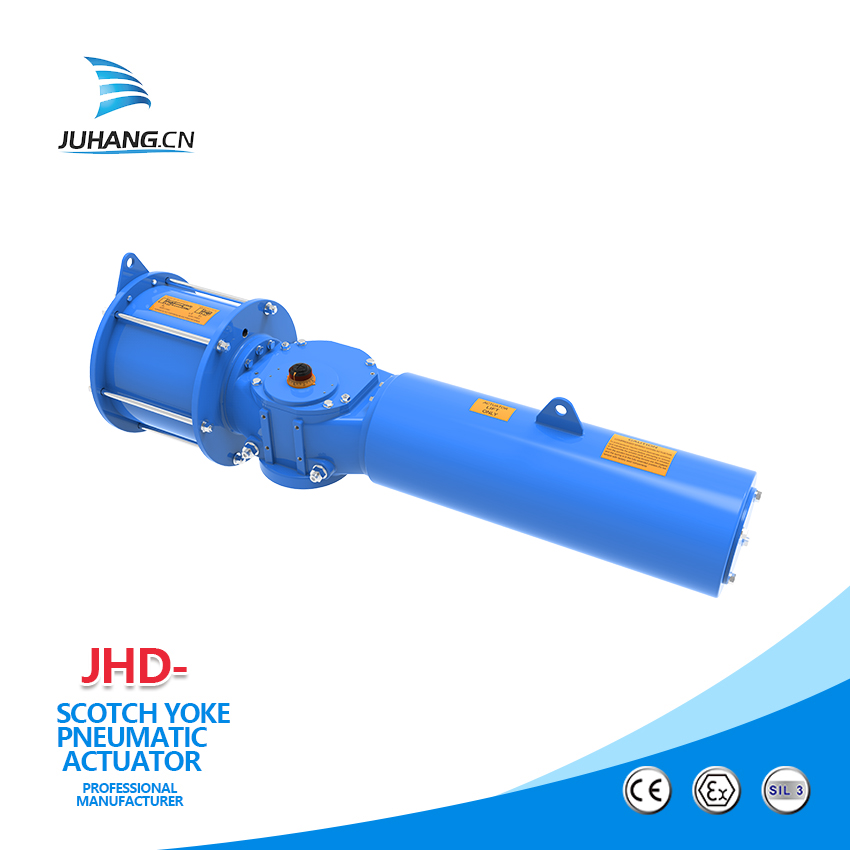

The advantages of using a Scotch Yoke design over other types of pneumatic actuators

Using a Scotch Yoke design for pneumatic actuators offers several advantages over other types of pneumatic actuators. These advantages make the Scotch Yoke design a preferred choice for certain applications. Here are some key advantages:

1. High Torque Output: The Scotch Yoke design provides high torque output during its stroke, making it suitable for applications that require substantial force to actuate valves or control mechanisms. This high torque output allows the actuator to handle larger and more demanding loads effectively.

2. Precise Control and Positioning: The sinusoidal motion of the Scotch Yoke mechanism results in smooth and precise control over the rotational movement. This feature allows for accurate positioning of the valve or mechanism being controlled, making it ideal for applications where precise control is crucial, such as in process industries or critical control systems.

3. Simple and Robust Construction: The Scotch Yoke design is relatively simple and has fewer moving parts compared to some other types of pneumatic actuators. This simplicity contributes to its robust construction, increasing reliability and reducing the risk of mechanical failures.

4. Compact Size: Scotch Yoke Pneumatic Actuators are often more compact compared to other types of actuators with similar torque capabilities. The compact size is beneficial for installations with space constraints or where a more streamlined and space-saving actuator design is desired.

5. Fail-Safe Option: Many Scotch Yoke Pneumatic Actuators come with a spring-return option. This spring mechanism ensures that the actuator returns to a specific position when the air supply is interrupted or fails. The fail-safe feature is essential for critical applications that require a predetermined fail position to maintain system safety.

6. Cost-Effectiveness: The simplicity of the Scotch Yoke design and the use of fewer components can lead to cost savings in terms of manufacturing, maintenance, and repair.

7. Durability and Longevity: Scotch Yoke Pneumatic Actuators are designed for heavy-duty applications and can withstand demanding operating conditions. Their robust construction and fewer wear-prone components contribute to their durability and longevity.

8. Suitable for High Cycles: The Scotch Yoke design is well-suited for applications that require frequent actuation cycles. It can handle a large number of cycles without compromising performance or reliability.

It's important to note that while the Scotch Yoke design has many advantages, it may not be the best choice for all applications. The selection of the most appropriate actuator type depends on various factors, such as application requirements, space limitations, torque needs, and cost considerations. Consulting with engineering experts and manufacturers can help in determining the best actuator solution for a specific application.
